$1.000,00

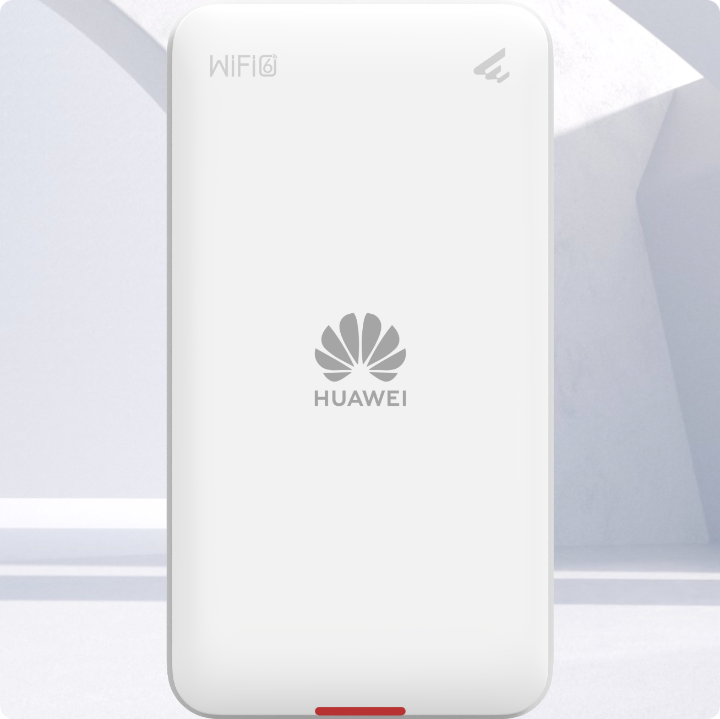

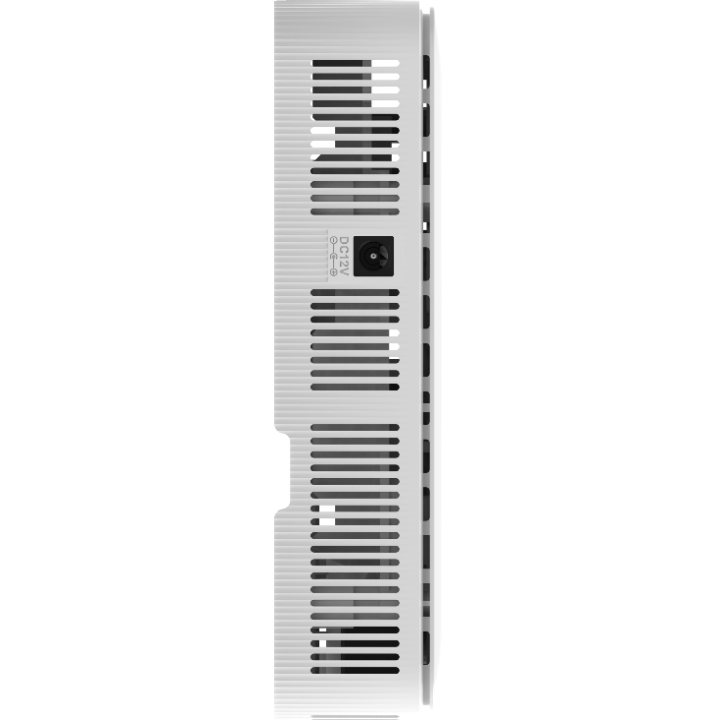

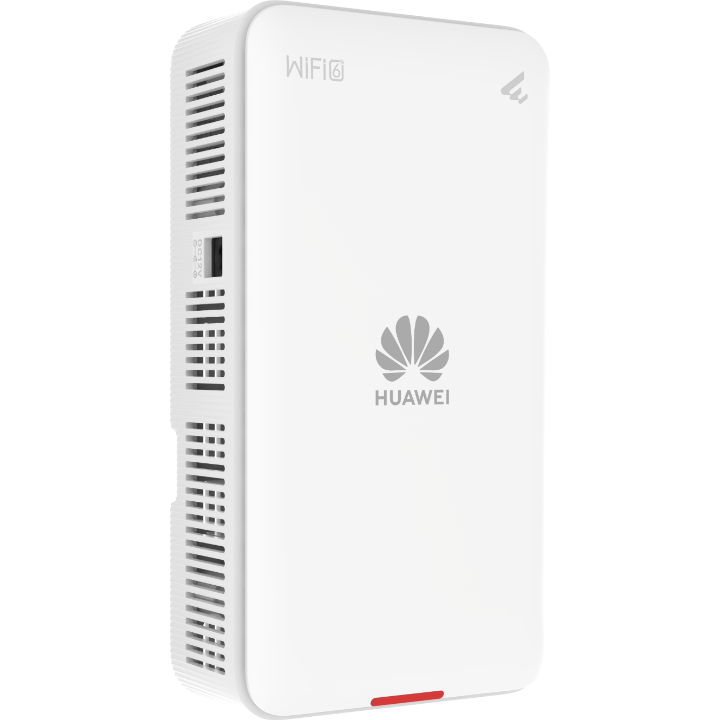

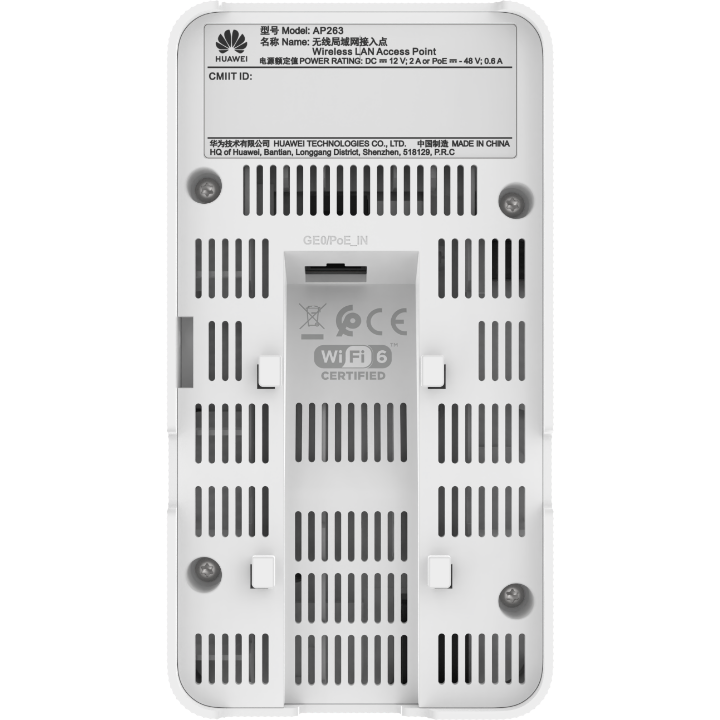

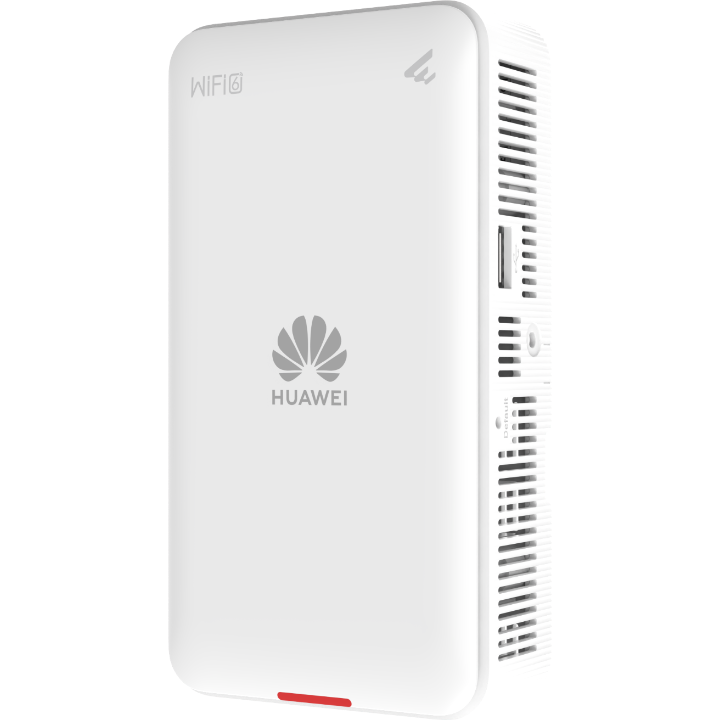

AP263(11ax indoor,2+2 dual bands,smart antenna,USB,BLE)
AP263(11ax indoor,2+2 dual bands,smart antenna,USB,BLE)
| Parámetro | Especificación |
|---|---|
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax5 GHz: 802.11a/n/ac/ac Wave 2/ax |

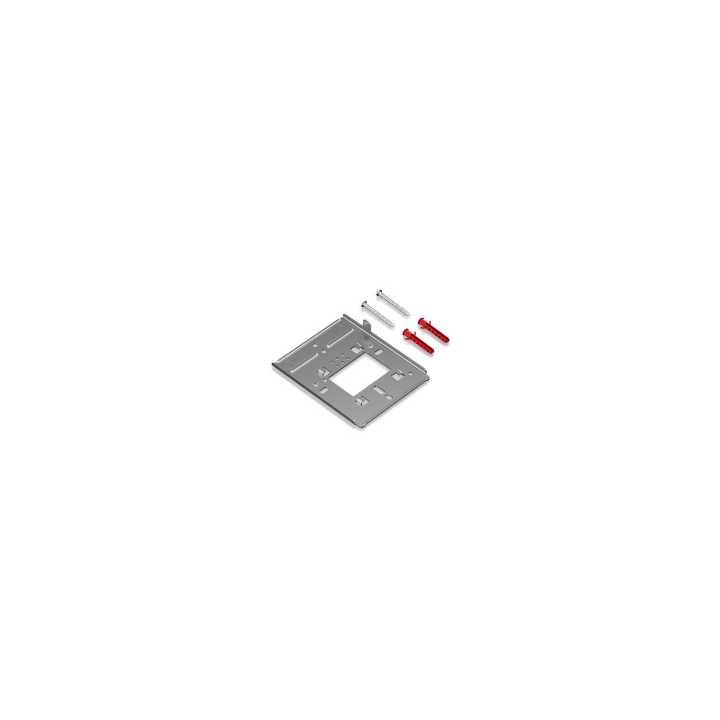

| Installation Type | Desk, Wall, Ceiling (Gypsum Board), Junction Box (86 mm/1-Gang 120 mm/Octagonal) |
| Optimal Signal Distance (m) | 13 |
| Max Number of Access Users | 256 |
| Recommended Number of Access Users | 64 |
| Device Rate | 2.975 Gbps |
| Maximum number of physical ports on the entire device | GE (RJ45) x 2, 10M/100M/1000M auto-sensing |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHzRadio 1 (5 GHz): 160 MHz |
| Maximum transmit power | 2.4G: 20 dBm/chain, 23 dBm (combined power)5G: 20 dBm/chain, 23 dBm (combined power)BLE: < 10 dBm |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2Radio 1 (5 GHz): 2×2 |
| Maximum power consumption [W] | 12 |
| Input voltage range [V] | 12±10%PoE: 802.3at/af |
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.) |
| Weight without packaging [kg(lb)] | 0.320 kg (0.705 lb) |
| Weight with packaging [kg(lb)] | 0.542 kg (1.195 lb) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 2 dBi/chain (peak value), 1 dBi (combined |
