$1.000,00

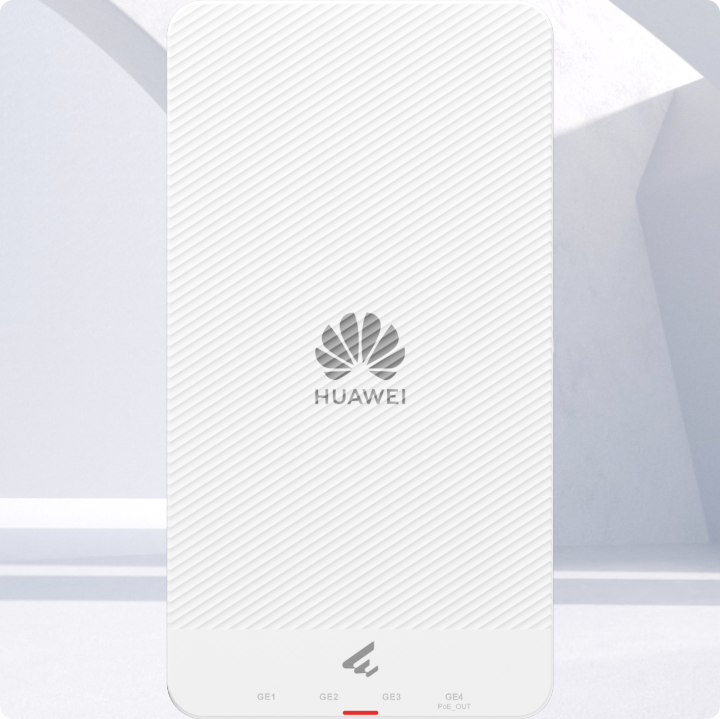

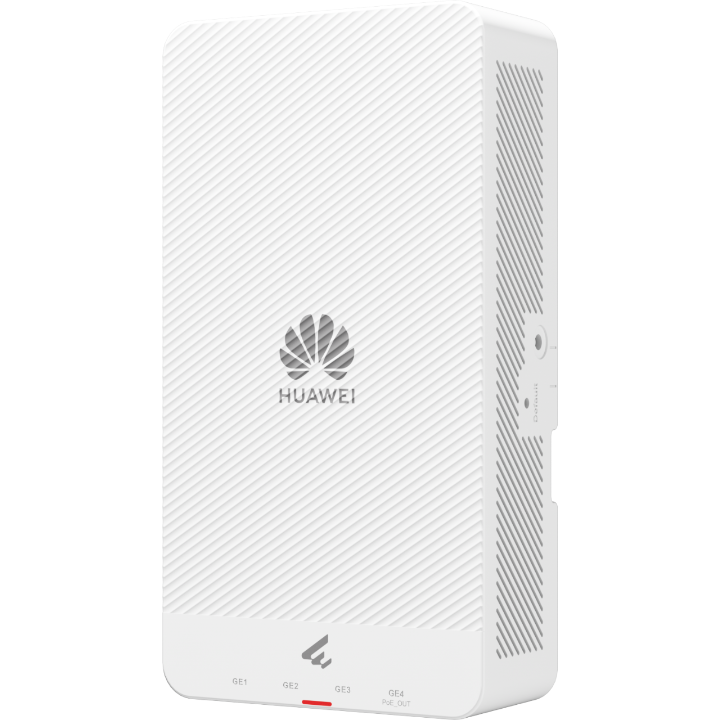

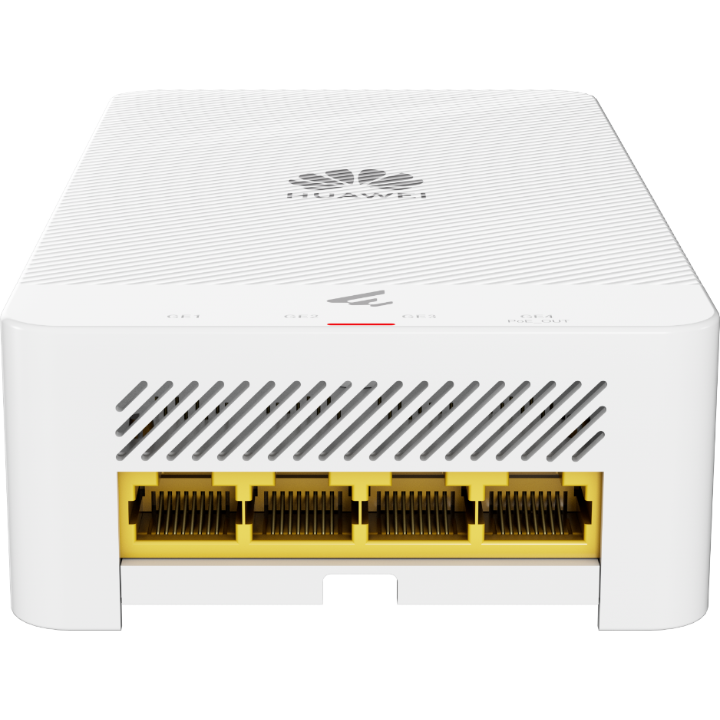

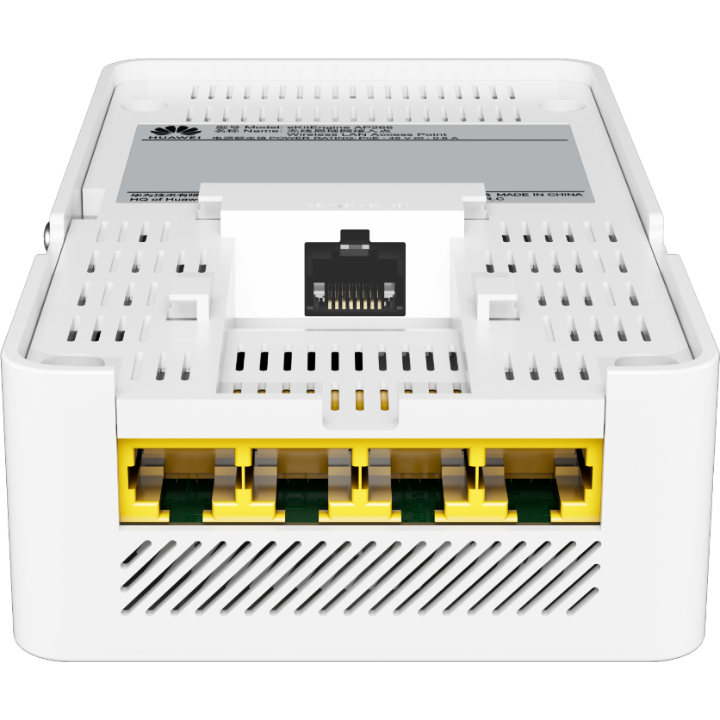

Wall plate AP | Wi-Fi 6 | 2.975 Gbps device rate | Dual-radio | 64 access users recommended | Max. 128 access users | 23 dBm transmit power | 4 x GE electrical ports | PoE | Smart antenna | leader AP | 20 m optimal coverage range
Wall plate AP | Wi-Fi 6 | 2.975 Gbps device rate | Dual-radio | 64 access users recommended | Max. 128 access users | 23 dBm transmit power | 4 x GE electrical ports | PoE | Smart antenna | leader AP | 20 m optimal coverage range
| Parámetro | Especificación |
|---|---|
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Installation Type | Desk, Wall, Ceiling (Gypsum Board), Junction Box (86 mm/1-Gang 120 mm/Octagonal) |
| Optimal Signal Distance (m) | 20 |
| Max Number of Access Users | 128 |
| Recommended Number of Access Users | 64 |
| Device Rate | 2.975 Gbps |
| Power supply mode | PoE |
| Input voltage range [V] | PoE: 802.3at/af |
| Service port surge protection | PoE ports: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion BCommon mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion BNon-PoE ports: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B |
| Maximum PoE output power [W] | 15 W |
| Maximum number of physical ports on the entire device | GE (RJ45) x 5, 10M/100M/1000M auto-sensing |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHzRadio 1 (5 GHz): 160 MHz |
| Maximum transmit power | 2.4G: 20 dBm/chain, 23 dBm (combined power)5G: 20 dBm/chain, 23 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2Radio 1 (5 GHz): 2×2 |
| Maximum power consumption [W] | 9.4 W (excluding PoE out) |
| Dimensions without packaging (H x W x D) [mm(in.)] | 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.) |
| Weight without packaging [kg(lb)] | 0.23 kg (0.51 lb) |
| Weight with packaging [kg(lb)] | 0.42 kg (0.93 lb) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G: 4 dBi/chain (peak value), 2 dBi (combined gain)5G: 4 dBi/chain (peak value), 1 dBi (combined gain) |
| Operating frequency band | 2.4GHz, 5GHz |
