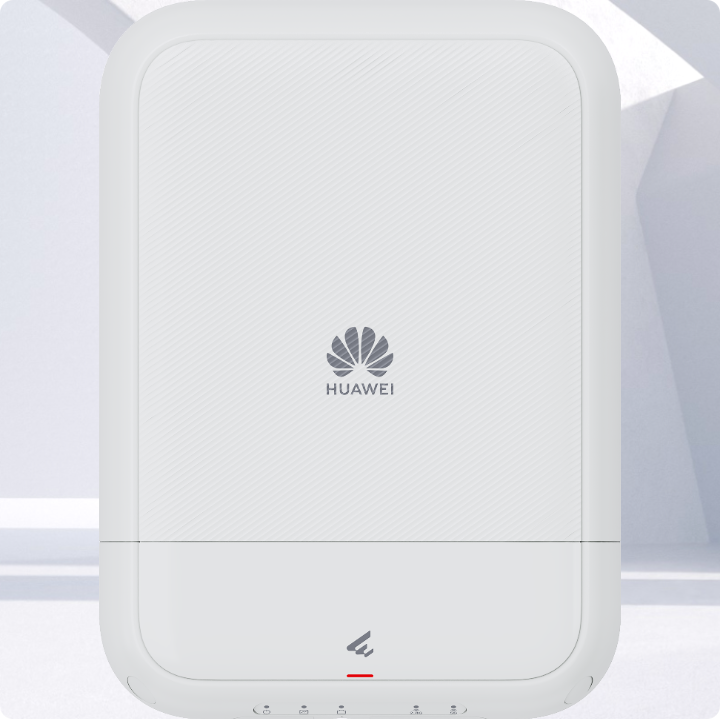

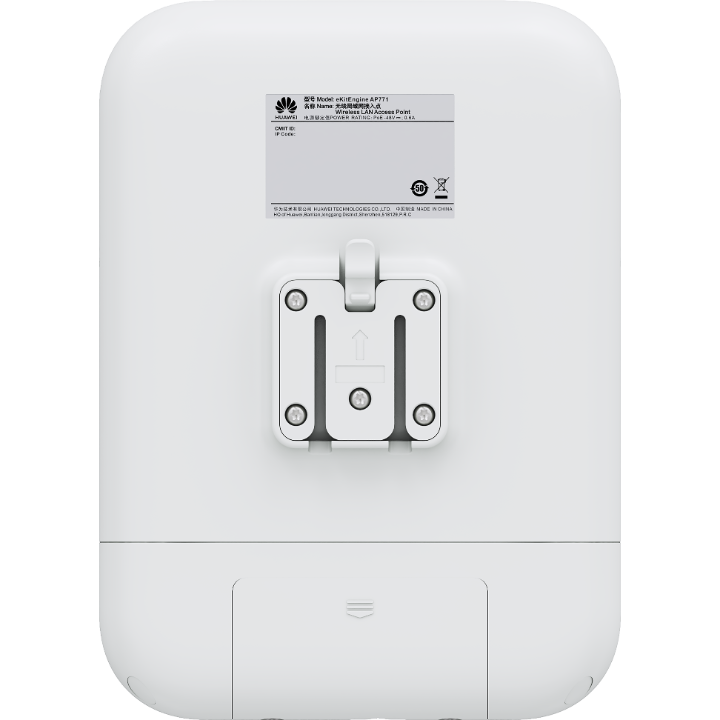

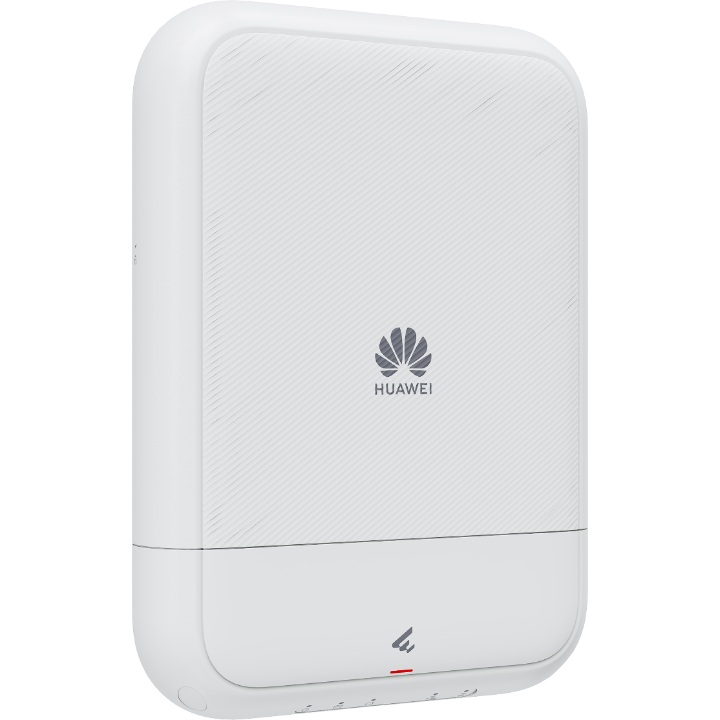

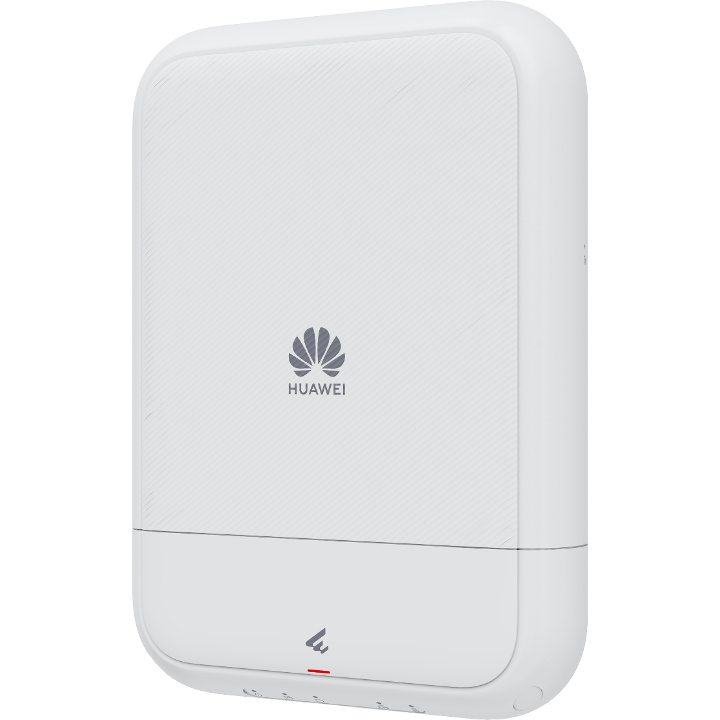

AP771(11be outdoor,2+2 dual-band,omnidirectional antenna)
AP771(11be outdoor,2+2 dual-band,omnidirectional antenna)
| Parámetro | Especificación |
|---|---|
| Installation Type | Wall, Pole |
| Dimensions without packaging (H x W x D) [mm(in.)] | 270 mm x 196 mm x 51 mm (10.63 in. x 7.72 in. x 2.01 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 356 mm x 250 mm (4.33 in. x 14.02 in. x 9.84 in.) |
| Weight without packaging [kg(lb)] | 1.14 kg (2.51 lb) |
| Weight with packaging [kg(lb)] | 1.78 kg (3.92 lb) |
| Power supply mode | PoE |
| Rated input voltage [V] | PoE: 802.3at/af |
| Input voltage range [V] | PoE: 802.3at/af |
| Service port surge protection | PoE port: Surge: Differential mode: 1.5 kV (D.1), 10/700 us, 15 ohms + 25 ohms, criterion B; Differential mode: 1.5 kV (D.2), 10/700 us, 15 ohms + 25 ohms, criterion C; Common mode: 6 kV (C.3), 10/700 us, 15 ohms + 25 ohms/wire, criterion B: 6) Differential mode: 1 kV (D.1), 1.2/50 us, 42 ohms, criterion B; Differential mode: 1 kV (D.2), 1.2/50 us, 42 ohms, criterion B; Common mode: 2 kV (C.3), 1.2/50 us, 2 ohms + 40 ohms x n/wire, criterion B; Inrush current: Differential mode: 250 A (D.2), 8/20 μs, criterion C; Common mode: 6 kA/8-wire, 8/20 us, criterion C |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2.5G auto-sensing |
| Long-term operating temperature [°C(°F)] | –30°C to +60°C (–22°F to +140°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | Operating humidity: 5% RH to 95% RH; Storage humidity: 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ingress protection level (dustproof/waterproof) | IP65 |
| Ground | Floating ground |
| Wind resistance | 77 m/s |
| Radio number | 2 |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2×2; Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be; 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be |
| Radio interface | Built-in omnidirectional antennas |
| Antenna gain | 2.4 GHz: 4 dBi/chain (peak value), 2 dBi (combined gain); 5 GHz: 7 dBi/chain (peak value), 4 dBi (combined gain) |
| Maximum transmit power | 2.4 GHz: 25 dBm/chain, 28 dBm (combined power); 5 GHz: 24 dBm/chain, 27 dBm (combined power) |
| Maximum power consumption [W] | 18.8 |
| 802.3bt power supply description | The power supply mode is negotiated to 802.3at, and no function is restricted. |
| 802.3at power supply description | The power supply mode is negotiated to 802.3at, and no function is restricted. |
| 802.3af power supply description | If the power supply mode is negotiated to 802.3af, the ambient temperature range is –10°C to +60°C (14°F to 140°F), and the radio transmit power decreases by 3 dB. |
| Operating frequency band | 2.4GHz, 5GHz |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz; Radio 1 (5 GHz): 160 MHz |
