$1.000,00
Enterprise-Grade Wireless Router | Wi-Fi 7 | Number of IPSec Tunnels: 8 | Plastic, White | Number of Managed APs: 8 | Number of Managed Devices: 9 | Number of connected terminals: 100 | Egress Bandwidth: 2Gbps | VPN Forwarding Performance: 200Mbps | 4 GE Electrical Ports + 1 2.5GE Electrical Port
Enterprise-Grade Wireless Router | Wi-Fi 7 | Number of IPSec Tunnels: 8 | Plastic, White | Number of Managed APs: 8 | Number of Managed Devices: 9 | Number of connected terminals: 100 | Egress Bandwidth: 2Gbps | VPN Forwarding Performance: 200Mbps | 4 GE Electrical Ports + 1 2.5GE Electrical Port
| Parámetro | Especificación |
|---|---|
| Installation type | Work bench, Against the wall |
| Dimensions without packaging (H x W x D) [mm(in.)] | – Basic dimensions: 35 mm x 195 mm x 130 mm (1.38 in. x 7.68 in. x 5.12 in.)- Maximum dimensions: 163 mm x 195 mm x 150 mm (6.42 in. x 7.68 in. x 5.91 in.) |
| Chassis height [U] | 0.8 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 230 mm x 185 mm (3.54 in. x 9.06 in. x 7.28 in.) |
| Weight with packaging [kg(lb)] | 0.99 kg (2.18 lb) |
| Weight without packaging [kg(lb)] | 0.63 kg (1.39 lb) |
| CPU | 1.3 GHz, dual-core |
| Maximum power consumption [W] | 13 |
| Typical power consumption [W] | 7 |
| Power supply mode | AC power adapter |
| Number of power modules | 1 |
| Rated input voltage [V] | 110 V AC–220 V AC; 50/60 Hz |
| Input voltage range [V] | 90 V AC–264 V AC; 45 Hz–65 Hz |
| Maximum output power [W] | 24 W |
| Safety regulation certification | IEC/EN/UL 62368-1; GB 4943.1; CSA C22.2 No. 62368-1; AS/NZS 62368-1 |
| EMC certification | EN 55032; EN 55035; EN 300386; EN 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301 489-17; ICES-003; AS/NZS CIPSR32; VCCI-CIPSR32; GB/T 9254.1; FCC CFR47 part 15 |
| Heat dissipation mode | Natural heat dissipation |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F)Note: When the altitude is 1800 m–5000 m (5906 ft.–16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |

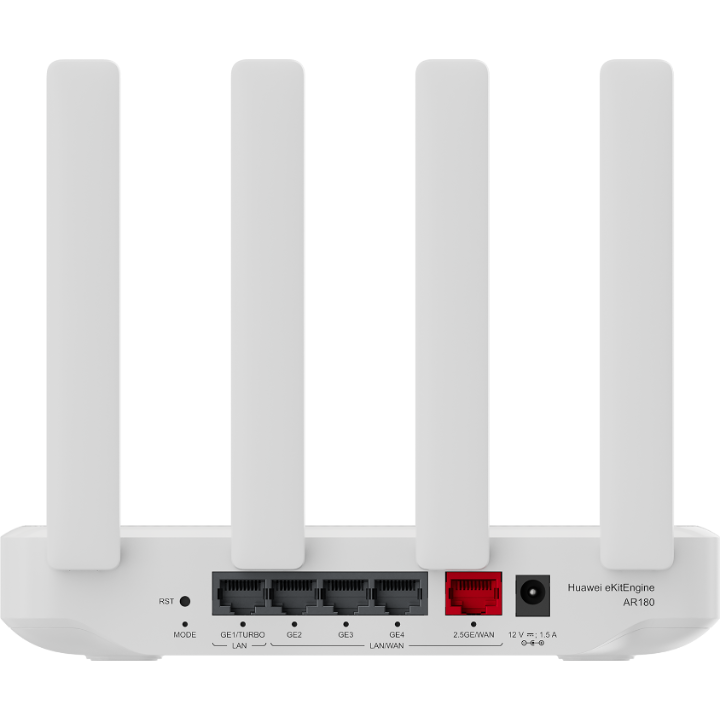

| LAN ports | 4 x GE electrical interfaces |
| WAN ports | 1 x 2.5GE electrical port |
| Airflow | Natural heat dissipation |
| Environmental standards compliance | EN 300 019-2; IEC 60068-2 |
| Overtemperature alarm | Supported |
| GE RJ45 | 4 (1G/100M/10M) |
| 2.5GE RJ45 | 1 (2.5G/1G/100M/10M) |
| Certification | EMC certification; Safety certification; Manufacturing certification |
